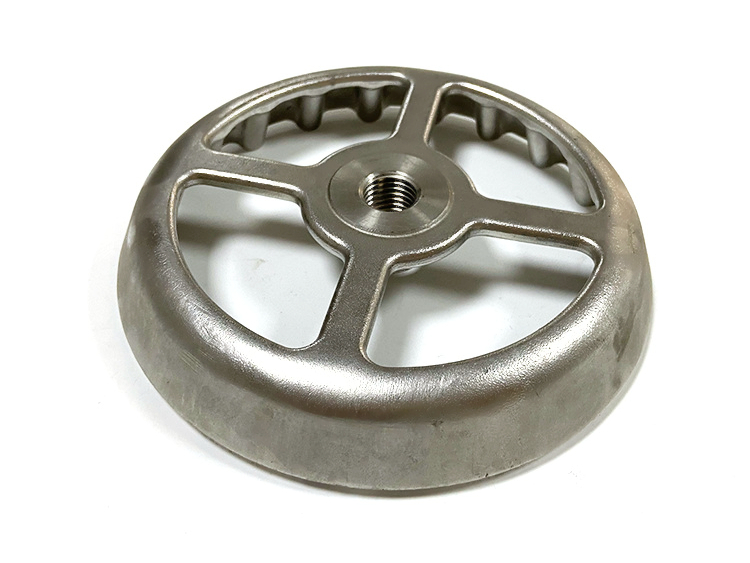

Building Strength: Custom Gravity Casting for Enhanced Structural Integrity in Parts
Gravity Casting Structural Integrity RFQ Decision: This article explains how buyers can evaluate custom gravity casting for load-bearing aluminum brackets, housings, pump parts, valve bodies, mounting plates, and other cast metal components where structural integrity affects assembly and service performance. The practical RFQ problem is defining material grade, wall thickness, porosity limits, heat treatment, machined datums, and inspection criteria before the supplier quotes the casting route.
Structural integrity in gravity casting is controlled by the full manufacturing chain. Alloy selection, melt quality, mold temperature, gating, riser design, solidification, machining allowance, secondary operations, and inspection all influence whether a casting can support the buyer's drawing requirements. A buyer should treat strength as an engineering requirement, not as a general marketing claim.
What Does Structural Integrity Mean For Gravity Cast Parts?
Structural integrity means the cast part can support its intended loads, assembly forces, vibration, temperature exposure, and service environment without unacceptable deformation, cracking, leakage, or premature wear. For gravity cast parts, structural integrity depends on both the casting blank and the post-casting operations that create final functional features.
The buyer should define the part function before discussing process benefits. A mounting bracket may need stable hole location and load transfer. A pump housing may need pressure containment and machined sealing faces. A valve body may need internal passage quality and leak control. A cover may need lower structural demand but stronger cosmetic or corrosion requirements.
The RFQ implication is that the supplier needs more than a material name. The drawing should identify load paths, critical sections, machined datums, sealing areas, threaded holes, and inspection requirements. Without those entities, the quotation cannot reliably separate cosmetic casting quality from structural casting quality.
Which Gravity Casting Conditions Affect Strength And Porosity?
Strength and porosity are affected by mold filling, solidification, melt cleanliness, alloy behavior, wall thickness, gating, riser design, and cooling control. Gravity casting uses natural metal flow rather than external pressure, so the part design must allow controlled filling and feeding. Thin sections, abrupt thickness changes, deep bosses, and isolated heavy masses can create structural risk if they are not reviewed early.
Porosity matters because pores can reduce pressure tightness, machining quality, and local load capacity. Some porosity may be acceptable in non-critical areas, while porosity near a sealing face, threaded boss, bearing seat, or pressure boundary may be unacceptable. The buyer should define location-specific acceptance criteria instead of applying one vague rule to the entire casting.
Defect prevention starts before trial casting. The supplier may need to adjust fillets, wall transitions, rib layout, gate position, riser location, machining stock, or inspection method. Buyers should leave room for manufacturability feedback before freezing a high-risk geometry.
Structural Casting Entity | Buyer Question | RFQ Detail To Define | Manufacturing Implication |
|---|---|---|---|
Load path | Where does the part carry force? | Mounting points, rib direction, critical sections | Load path review guides wall thickness and fillet decisions |
Porosity-sensitive area | Which zones cannot tolerate internal defects? | Pressure boundary, sealing face, threaded boss, bearing seat | Inspection and gating design should focus on critical zones |
Wall thickness transition | Does the casting feed and cool evenly? | Section thickness, fillet radius, heavy mass location | Abrupt transitions can increase shrinkage or crack risk |
Machined datum | Which surfaces locate the final assembly? | Datum scheme, stock allowance, flatness, hole pattern | Datum planning connects the casting blank to final assembly quality |
Heat treatment | Does the material need post-casting property control? | Alloy grade, required condition, hardness or strength requirement | Heat treatment may affect distortion, machining, and inspection scope |
How Should Material Grade Be Selected For Structural Gravity Castings?
Material grade should be selected from the part function, not from a general strength label. Cast aluminum gravity casting is often reviewed for structural brackets, housings, covers, and lightweight assemblies. A356 aluminum gravity casting may be considered where heat treatment response and casting quality are important. A380 aluminum may appear in route comparisons when buyers evaluate die casting and gravity casting options for aluminum components.
Copper alloy gravity casting may fit wear, thermal, or electrical requirements, while zinc alloy gravity casting may suit smaller components where castability and dimensional behavior are important. Each material requires review of mechanical properties, corrosion exposure, machining response, defect sensitivity, and finish requirements.
The buyer should include material standard, required condition, heat treatment if applicable, hardness requirement if applicable, and any material certificate requirement. For regulated or safety-related applications, the buyer should define the required validation and acceptance standards because final application approval remains the buyer's responsibility.
Which Part Features Create Structural RFQ Risk?
Structural RFQ risk increases when the casting has sharp corners, thin walls next to heavy bosses, long unsupported ribs, deep pockets, threaded bosses in load paths, pressure passages, or machined sealing surfaces. These features can be produced in some gravity casting programs, but the design needs process review before the quote is treated as stable.
Sharp corners can concentrate stress and create feeding difficulty. Heavy bosses can create shrinkage risk. Thin walls can misrun or distort. Threaded bosses may need enough stock for drilling and tapping after casting. Sealing faces may require machining and leak testing. Each feature should be listed in the RFQ because each feature can change mold design, gating, machining, and inspection.
Buyers should identify critical-to-function dimensions on the drawing. A non-critical exterior rib and a safety-related mounting feature should not receive the same inspection weight. Clear feature priority helps the supplier focus casting control where structural performance depends on it.
What Inspection Methods Support Structural Acceptance?
Structural acceptance should be based on inspection methods that match part risk. Dimensional inspection confirms machined datums, hole positions, flatness, and wall sections. Visual inspection confirms obvious surface defects and handling damage. Pressure or leak testing may be required for housings and valve bodies. Hardness testing or material certificates may be needed when material condition is part of the buyer requirement.
Non-destructive testing may be considered for critical zones when the part function requires internal defect review. The buyer should specify the method, acceptance level, sampling plan, and inspected zone instead of requesting broad inspection language. Overly broad inspection can increase cost, while unclear inspection can miss the actual structural risk.
Inspection also affects quotation timing. First article inspection, production inspection reports, material traceability, heat treatment records, and special testing should be identified before the first quote. Late inspection additions can change the manufacturing route and supplier responsibility.
Structural Requirement | Inspection Method | Buyer Input Needed | RFQ Risk If Missing |
|---|---|---|---|
Mounting accuracy | Dimensional inspection | Datum scheme, hole location, flatness, report format | Assembly fit risk may appear after trial parts |
Pressure boundary | Pressure or leak test | Test medium, pressure condition, acceptance criteria | Porosity risk may be underestimated |
Material condition | Material certificate, hardness test, heat treatment record | Grade, standard, required condition, traceability need | Material approval may be delayed after production |
Internal defect control | Non-destructive testing if required | Inspection zone, method, acceptance level, sampling plan | Testing cost and reject criteria may be unclear |
How Should Buyers Compare Gravity Casting With Other Routes For Strength?
Buyers should compare gravity casting with other manufacturing routes by matching structural requirements to process economics. Sand casting may suit larger structures or lower tooling pressure. Aluminum die casting may suit higher-volume thin-wall aluminum parts when die investment is justified. CNC machining may fit very low quantity parts, prototype revisions, or simple geometries where billet material properties are preferred.
Gravity casting can be a strong candidate when a permanent mold route supports repeatable geometry, material control, and manageable tooling cost for the expected volume. The buyer should compare total cost and risk: mold investment, casting yield, machining allowance, heat treatment, inspection, finishing, and design revision cost.
Structural performance should not be assumed from the process name. The route decision should be based on the part drawing, material grade, load path, defect limits, and validation plan. A supplier can help review manufacturability, but the buyer should define final application requirements and acceptance criteria.
What Should A Structural Gravity Casting RFQ Include?
A structural gravity casting RFQ should include a 2D drawing, 3D model if available, material grade, expected quantity, part function, load-bearing features, operating environment, wall thickness concerns, machined datums, critical dimensions, heat treatment requirements, surface finish, inspection method, and documentation needs. If the buyer has a target route comparison, the RFQ should state whether CNC machining, sand casting, die casting, or another casting method is under review.
The RFQ should also identify development status. A part that is still changing may need manufacturability review before final mold investment. A released drawing can move more directly into mold design, trial casting, and first article inspection. This distinction prevents quotation surprises when the design changes after tooling.
The strongest quotation connects structural integrity to specific manufacturing evidence. When material, geometry, machining, heat treatment, inspection, and acceptance criteria are visible, custom gravity casting can be evaluated as a practical route for structural metal parts rather than a broad strength claim.
