Unleashing Creativity in Product Design with the Flexibility of Insert Molding
Insert Molding Design Flexibility RFQ Decision explains how the insert molding process supports product designs that need metal threads, electrical contacts, bushings, pins, shafts, magnets, brackets, or reinforcement features inside a molded plastic part. The buyer decision is whether those functional features should be integrated during molding instead of being added later through fastening, bonding, press-fit insertion, or separate assembly. The practical RFQ problem is that design flexibility depends on insert geometry, resin selection, tool access, insert holding, critical dimensions, and inspection criteria.
How Does Insert Molding Expand Product Design Options?
Insert molding expands product design options by combining molded plastic geometry with pre-formed inserts. The insert can provide threads, conductivity, wear resistance, magnetic function, alignment, reinforcement, or mounting features while the plastic body provides shape, insulation, weight control, and part integration.
The design benefit is strongest when the insert has a clear functional role. A threaded brass insert can support repeated assembly, a metal terminal can provide an electrical interface, a bushing can control wear, and a reinforcement plate can help distribute load. Insert molding lets the product designer place these features inside the molded part instead of building a multi-part assembly around them.
Buyers should define the function before asking for quotation. The same insert shape may require different molding and inspection decisions depending on whether the insert controls strength, electrical contact, alignment, sealing, or assembly repeatability.
Which Insert Molded Features Should Be Planned Early?
Insert molded features should be planned early because insert placement affects the mold structure, gate location, resin flow, wall thickness, and inspection plan. Adding an insert late in the design stage can create avoidable tooling risk.
Insert Molded Feature | Design Flexibility Created | RFQ Detail Needed |
|---|---|---|
Threaded insert | Allows molded plastic housings to accept repeated fastener assembly | Thread standard, torque requirement, pull-out requirement, and insert material |

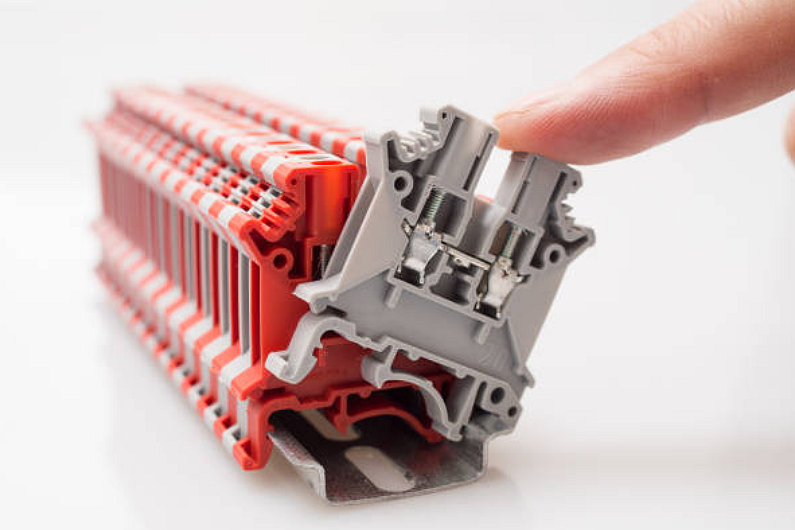

Electrical terminal or contact | Combines plastic insulation with controlled conductive interface | Terminal drawing, contact area, position tolerance, and continuity requirement |
Bushing, sleeve, or shaft | Adds alignment, wear surface, hinge support, or rotating interface | Datum surfaces, mating component, wear condition, and exposed length |

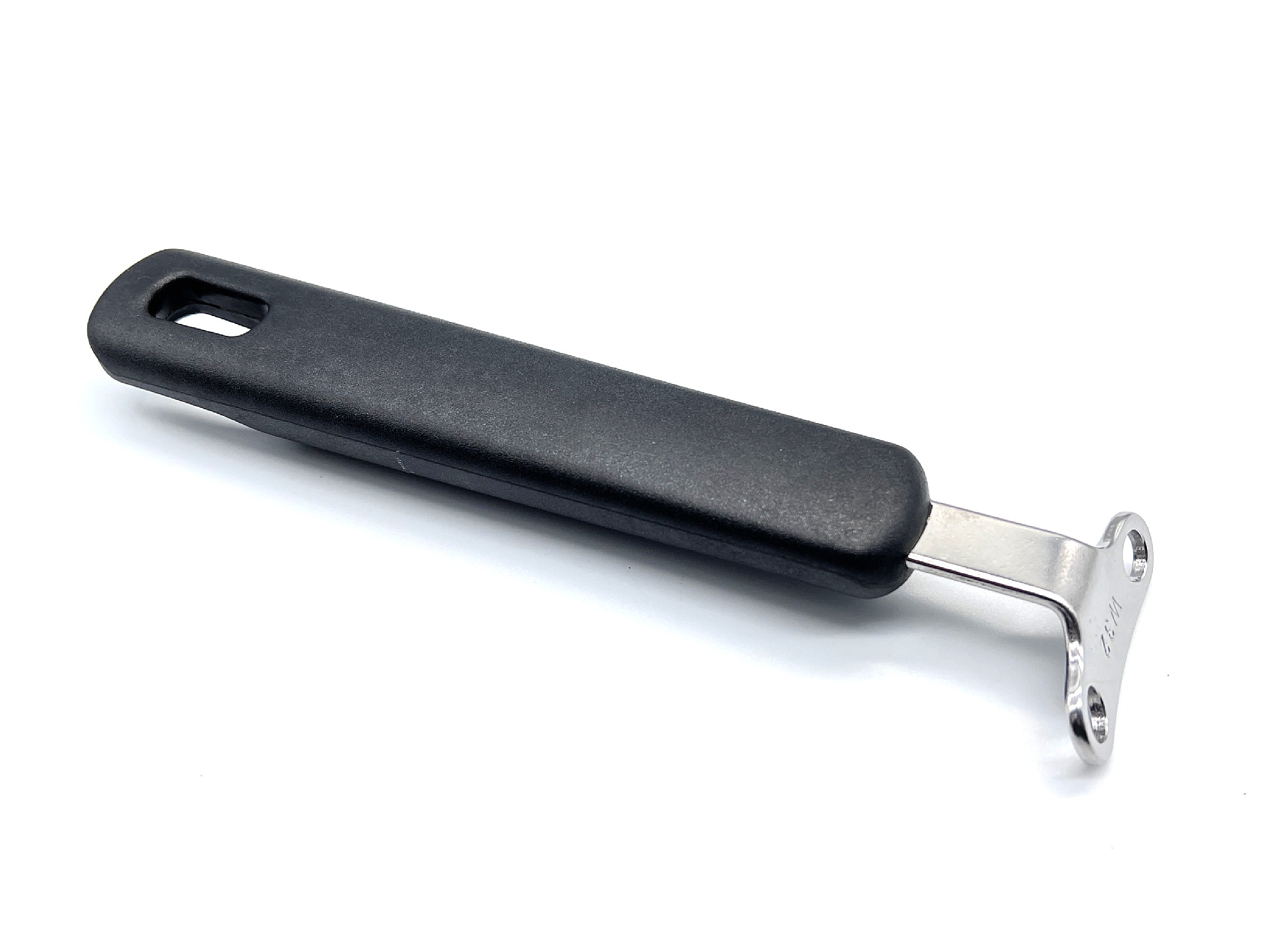

Metal bracket or reinforcement plate | Adds localized stiffness or load transfer in a plastic structure | Load direction, retention feature, wall thickness, and assembly load |
Magnet or sensor-related insert | Integrates functional placement into a molded housing | Orientation, position tolerance, heat sensitivity, and inspection method |
How Do Materials Affect Insert Molding Design Flexibility?
Materials affect design flexibility because the resin must flow around the insert, hold the insert, and support the intended function. The insert material must also tolerate molding temperature, clamping, handling, and the final use environment.
Common resin choices include ABS, nylon PA, PC, PP, POM, PPS, and PEEK. Insert materials may include brass, steel, stainless steel, aluminum, copper alloy, magnets, or molded plastic inserts depending on the part function.
Material selection should not be separated from design review. A thin plastic wall around a hot metal insert can crack or sink. A low-stiffness resin may not support a high-load insert. A sensitive insert may require special handling during molding. The RFQ should describe the functional requirement and the material constraints together.
When Does Insert Molding Improve Design Compared With Separate Assembly?
Insert molding improves design compared with separate assembly when the inserted feature must be located accurately, protected inside plastic, or combined with the molded shape. Separate assembly may still be practical, but it can add placement variation, extra fasteners, adhesive operations, or inspection steps.
For consumer electronics, insert molding may locate terminals, threaded bosses, magnets, or metal shields inside compact housings. For automotive components, insert molding may integrate bushings, terminals, brackets, or threaded mounting points. For medical device housings, buyers may use insert molding to control assembly interfaces and support defined validation requirements.
The process should be selected when integration creates a real manufacturing or product function benefit. If the insert must be replaced, adjusted, or serviced after molding, post-mold assembly may be more suitable.
What Geometry Limits Should Buyers Review?
Insert molding has design limits. The insert must fit into the tool, stay in position during injection, allow resin to flow around critical features, and release from the mold without damaging the part.
Complex designs should be reviewed for insert access, holding surfaces, undercuts, thin walls, sharp insert edges, resin flow length, knit lines, and ejection. Very small inserts, many insert variants, or inserts with sensitive surfaces may require special loading or inspection planning. If the insert is close to a cosmetic surface, sink and shadow marks may also need review.
Design Limit in Insert Molding | Manufacturing Risk | Buyer Decision |
|---|---|---|
Thin plastic around insert | Cracking, sink, weak knit line, or poor retention | Review wall thickness and load requirement before tooling |
Insert without holding surface | Shift, tilt, or rotation during molding | Define datum and tool holding area on the insert |
Insert near visible surface | Sink marks, flow marks, or exposed insert edges | Define appearance zones and acceptable surface condition |
Multiple inserts in one part | Missing insert, wrong orientation, or longer loading time | Define insert count, orientation, poka-yoke needs, and inspection checks |
How Should Buyers Prepare an Insert Molding Design RFQ?
A useful insert molding design RFQ should connect the part concept to manufacturing details. The RFQ should include the 3D model, 2D drawing, insert drawing, resin material, insert material, functional surfaces, critical dimensions, expected volume, and validation criteria.
Buyers should also identify the current design challenge. Is the goal to reduce assembly parts, add metal threads, combine electrical contacts, improve wear resistance, strengthen a plastic boss, or hold a sensor position? A clear goal helps Neway review whether insert molding, post-mold insertion, overmolding, or standard plastic injection molding is the best route.
If the design is early, the RFQ can include several insert concepts for manufacturability review. If the design is frozen, the RFQ should clearly identify which dimensions and functions cannot change.
What Inspection Criteria Support Design Flexibility?
Inspection criteria support design flexibility by making insert function measurable. A flexible design still needs clear acceptance criteria for insert position, resin coverage, surface condition, and functional performance.
Dimensional inspection may check insert height, hole position, concentricity, exposed length, and datum alignment. Functional inspection may check torque, pull-out, continuity, assembly fit, or wear-related criteria. Visual inspection may check flash, sink, cracking, exposed edges, and missing or reversed inserts.
The inspection plan should be defined before production release. Without acceptance criteria, a creative insert molded design can become difficult to approve during sampling.
What Neway Precision Reviews for Insert Molding Design Flexibility?
Neway Precision reviews insert molding design flexibility by connecting product function, insert design, resin material, tool access, insert holding, molding sequence, and inspection requirements. The review focuses on whether the proposed design can be molded consistently while preserving the buyer's required function.
The review can include insert orientation, insert retention, gate location, wall thickness, shrinkage risk, resin flow, cosmetic surfaces, and critical dimensions. This information helps decide whether insert molding is practical or whether another route should be considered.
Insert molding supports flexible product design when the insert has a defined job and the surrounding plastic is designed for that job. Clear RFQ data turns design flexibility into a manufacturable production plan.
