What is Investment Casting Process?
What is the investment casting process?
Investment casting, also called lost-wax casting, is a precision casting process that uses a wax pattern, ceramic shell, dewaxing, metal pouring, shell removal, and finishing to produce custom metal parts. Investment casting process review should connect wax pattern tooling, ceramic shell control, alloy selection, shrinkage allowance, machining allowance, surface finish, and inspection evidence to the buyer's drawing. The practical RFQ problem is deciding whether investment casting fits the part geometry, alloy grade, tolerance requirement, quantity, and post-cast operations.
Investment casting is often considered for complex metal parts with detailed features, curved surfaces, bosses, slots, internal transitions, and near-net shapes. The process can reduce machining in some areas, but critical datums, threaded holes, sealing faces, bearing areas, and precision bores may still need CNC machining after casting.
How does lost-wax investment casting work?
The process starts with wax pattern tooling. Wax patterns are produced to represent the casting shape with shrinkage and process allowance considered. Multiple wax patterns may be assembled onto a runner system to form a casting tree.

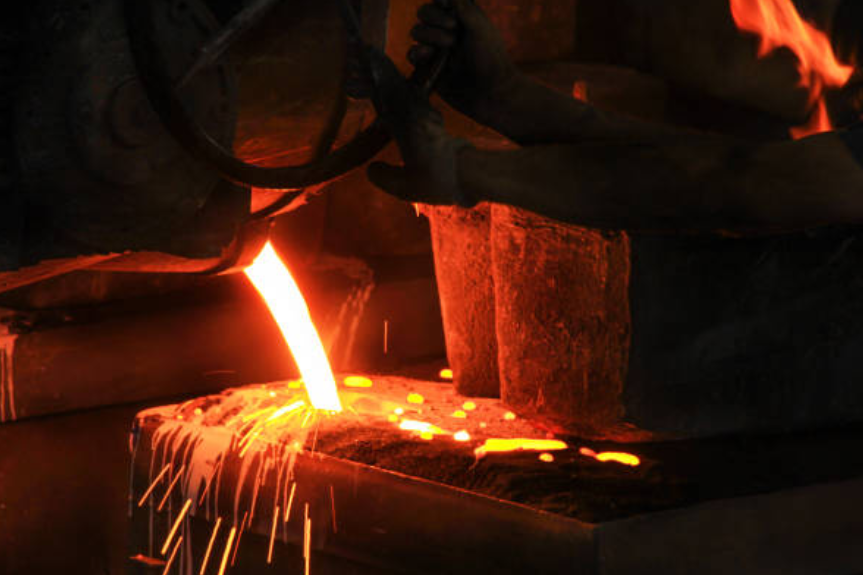

The wax assembly is repeatedly dipped into ceramic slurry and coated with refractory material to build a ceramic shell. After shell drying, the wax is removed by dewaxing, and the ceramic shell is fired. Molten metal is poured into the heated ceramic shell, solidifies, and forms the cast component.
After solidification, the ceramic shell is removed. The castings are cut from the tree, gates are removed, and the parts may go through heat treatment, straightening, blasting, grinding, CNC machining, polishing, coating, or inspection depending on the drawing requirements.
Which part features fit investment casting?
Investment casting is often useful when a part has complex curves, detailed bosses, small ribs, pockets, contours, or geometry that would be expensive to machine fully from billet. The process can be especially useful when the buyer needs an alloy that does not fit die casting or when the part shape requires more detail than many sand casting routes can provide.
The route still has limits. Very large parts, extremely thin features, deep blind cavities, tight internal passages, heavy section changes, and hard-to-clean geometries should be reviewed early. Ceramic cores may be needed for some internal features, and those cores add risk, cost, and inspection needs.
What alloys and shell factors affect investment cast parts?
Investment casting can be reviewed for stainless steel, carbon steel, alloy steel, selected aluminum alloys, selected copper alloys, and other casting alloys subject to material availability and process review. Alloy selection affects shrinkage, pouring temperature, heat treatment, corrosion behavior, machinability, and inspection requirements.
Ceramic shell design also matters. Shell thickness, slurry system, drying control, dewaxing, firing, pouring temperature, and cooling condition influence surface finish, dimensional control, shell inclusions, hot tears, and shrinkage risk. Buyers should define alloy grade and heat-treatment condition before quotation.
What defects and limitations should buyers expect?
Investment casting risks may include shrinkage, porosity, misrun, hot tears, shell inclusions, surface roughness, dimensional variation, distortion after heat treatment, and gate-removal marks. These risks do not mean the process is unsuitable, but they must be controlled through design review, wax tooling, shell process control, alloy selection, and inspection planning.
The buyer should mark critical dimensions, cosmetic surfaces, load paths, pressure boundaries, and machining datums on the drawing. This helps separate acceptable as-cast features from surfaces that need machining or nondestructive testing.
What secondary operations and inspection follow investment casting?
Investment cast parts often need secondary operations after casting. Common operations include cutoff, gate grinding, shot blasting, heat treatment, straightening, CNC machining, drilling, tapping, polishing, coating, plating, leak testing, pressure testing, and assembly. The sequence can change the final dimensions and surface condition.
Inspection evidence may include first article inspection, dimensional report, CMM inspection, material certificate, hardness test, heat-treatment record, surface roughness report, dye penetrant inspection, X-ray inspection, CT inspection, leak test, pressure test, or visual inspection standard. Parts used in regulated or safety-critical applications should define buyer qualification requirements and acceptance criteria before quotation; final validation remains the buyer's responsibility.
Process Stage | What Happens | Manufacturing Risk to Control | Buyer Confirmation Needed |
Wax pattern and tree assembly | Wax patterns are formed and attached to a runner system | Pattern distortion, shrinkage allowance error, gate location, and handling damage | 3D model, critical dimensions, cosmetic surfaces, gate restrictions, and quantity |
Ceramic shell building | Slurry and refractory layers build the casting shell | Shell cracking, inclusions, drying defects, surface roughness, and thickness variation | Alloy grade, surface finish, wall sections, ceramic core needs, and inspection standard |
Dewaxing and pouring | Wax is removed, shell is fired, and molten metal fills the shell cavity | Misrun, shrinkage, hot tears, porosity, and pouring temperature variation | Heat treatment, pressure or leak requirement, load path, and acceptance criteria |
Shell removal and cutoff | Ceramic shell is removed and castings are separated from the tree | Gate-removal marks, surface damage, distortion, and remaining ceramic material | Gate cleanup limit, visual standard, no-damage surfaces, and finishing requirements |
Machining and inspection | Critical features are machined and inspected to drawing requirements | Datum movement, machining stock shortage, coating build-up, and hidden defects | Final dimensions, machining notes, coating thickness, NDT needs, and report format |
What should buyers provide for an investment casting RFQ?
A useful RFQ should include the 2D drawing, 3D model, alloy grade, quantity, production stage, critical dimensions, tolerance requirements, as-cast surfaces, machined surfaces, heat treatment, surface finish, coating, leak or pressure requirement, cosmetic standard, and inspection method.
If the part could fit more than one casting route, the buyer can also ask for comparison against precision casting, sand casting, die casting, or CNC machining. The best route depends on the part geometry, alloy, quantity, tolerance, finishing, and validation requirements.
